RTextBasedData Class Reference

Stores and manages all data that defines the geometry and appearance of a text based entity (text, block attribute, block attribute definition). More...

#include <RTextBasedData.h>

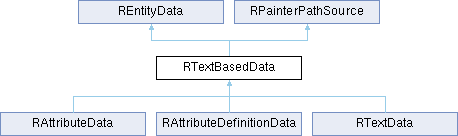

Inheritance diagram for RTextBasedData:

Public Types
enum	TextFlag {   NoFlags = 0x000 , Bold = 0x001 , Italic = 0x002 , Simple = 0x004 ,   DimensionLabel = 0x008 , Highlighted = 0x010 , Backward = 0x020 , UpsideDown = 0x040 }

Public Member Functions
virtual bool	flipHorizontal ()
virtual bool	flipVertical ()
RVector	getAlignmentPoint () const
double	getAngle () const
virtual RBox	getBoundingBox (bool ignoreEmpty=false) const
virtual QList< RVector >	getCenterPoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual RVector	getClosestPointOnEntity (const RVector &point, double range, bool limited) const
virtual QSharedPointer< RShape >	getClosestShape (const RVector &pos, double range=RNANDOUBLE, bool ignoreComplex=false) const
virtual double	getDistanceTo (const RVector &point, bool limited=true, double range=0.0, bool draft=false, double strictRange=RMAXDOUBLE) const
RS::TextDrawingDirection	getDrawingDirection () const
virtual QList< RVector >	getEndPoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual QString	getEscapedText (bool escapeUnicode=false) const
virtual QList< QSharedPointer< RShape > >	getExploded () const
bool	getFlag (RTextBasedData::TextFlag flag) const
QString	getFontFile () const
QString	getFontName () const
RS::HAlign	getHAlign () const
double	getHeight () const
	Height of the text (this is not equal to the bounding box height as it is the height of the text at 0 angle).
double	getLineSpacingFactor () const
RS::TextLineSpacingStyle	getLineSpacingStyle () const
virtual QFont	getMainFont () const
virtual QList< RVector >	getMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual QList< RPainterPath >	getPainterPaths (bool draft=false, double pixelSizeHint=RDEFAULT_MIN1) const
virtual QString	getPlainText () const
virtual RVector	getPointOnEntity () const
virtual QList< RVector >	getPointsWithDistanceToEnd (double distance, int from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX) const
RVector	getPosition () const
virtual QList< RRefPoint >	getReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const
virtual QString	getRenderedText (bool escapeUnicode=false) const
QList< RVector >	getRotatedBoundingBox () const
virtual QList< QSharedPointer< RShape > >	getShapes (const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=false, bool segment=false, QList< RObject::Id > *entityIds=NULL) const
QList< RTextBasedData >	getSimpleTextBlocks ()
virtual QString	getText () const
double	getTextHeight () const
QList< RTextLayout >	getTextLayouts () const
double	getTextWidth () const
	Width of the text box used for line wrapping.
virtual RS::EntityType	getType () const
RS::VAlign	getVAlign () const
double	getWidth () const
	Width of the text (this is not equal to the bounding box width as it is the width of the text at 0 angle).
double	getXScale () const
virtual bool	intersectsWith (const RShape &shape) const
bool	isBackward () const
bool	isBold () const
bool	isDimensionLabel () const
virtual bool	isDirty () const
bool	isHighlighted () const
bool	isItalic () const
virtual bool	isSane () const
bool	isSimple () const
bool	isUpsideDown () const
virtual bool	isValid () const
virtual bool	mirror (const RLine &axis)
virtual bool	move (const RVector &offset)
	Moves this entity by the given offset.
virtual bool	moveReferencePoint (const RVector &referencePoint, const RVector &targetPoint, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
	Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.
virtual bool	rotate (double rotation, const RVector &center)
	RTextBasedData (const RVector &position, const RVector &alignmentPoint, double textHeight, double textWidth, RS::VAlign verticalAlignment, RS::HAlign horizontalAlignment, RS::TextDrawingDirection drawingDirection, RS::TextLineSpacingStyle lineSpacingStyle, double lineSpacingFactor, const QString &text, const QString &fontName, bool bold, bool italic, double angle, bool simple)
	RTextBasedData (RDocument *document=NULL)
virtual bool	scale (const RVector &scaleFactors, const RVector &center)
void	setAlignmentPoint (const RVector &alignmentPoint)
void	setAngle (double angle)
void	setBackward (bool on)
void	setBold (bool on)
void	setDimensionLabel (bool on)
void	setDrawingDirection (RS::TextDrawingDirection drawingDirection)
void	setFlag (RTextBasedData::TextFlag flag, bool on=true)
void	setFontFile (const QString &fontFile)
void	setFontName (const QString &fontName)
void	setHAlign (RS::HAlign halign)
void	setHighlighted (bool on)
void	setItalic (bool on)
void	setLineSpacingFactor (double lineSpacingFactor)
void	setLineSpacingStyle (RS::TextLineSpacingStyle lineSpacingStyle)
void	setPosition (const RVector &position)
void	setSelected (bool on)
	Selects or deselects this entity.
void	setSimple (bool on)
void	setText (const QString &text)
void	setTextHeight (double h)
void	setTextWidth (double w)
void	setUpsideDown (bool on)
void	setVAlign (RS::VAlign valign)
void	setXScale (double xScale)
void	sync (const RTextBasedData &other)
virtual void	to2D ()
virtual void	update () const
	Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).
virtual void	update (bool layout) const
virtual	~RTextBasedData ()
Public Member Functions inherited from REntityData
virtual const RShape *	castToConstShape () const
virtual RShape *	castToShape ()
virtual bool	clickReferencePoint (const RVector &referencePoint)
	Called when user clicks a reference point.
virtual bool	cloneOnChange () const
	Reimplement to force clone on change in transactions.
void	copyAttributesFrom (const REntityData &entityData, bool copyBlockId=true)
virtual QList< RVector >	getArcReferencePoints (const RBox &queryBox=RDEFAULT_RBOX) const
bool	getAutoUpdatesBlocked () const
RObject::Id	getBlockId () const
QString	getBlockName () const
virtual QList< RBox >	getBoundingBoxes (bool ignoreEmpty=false) const
virtual QList< RVector >	getCenterPoints (const RBox &queryBox=RDEFAULT_RBOX, QList< RObject::Id > *subEntityIds=NULL) const
virtual RVector	getClosestPointOnEntity (const RVector &point, double range=RNANDOUBLE, bool limited=true, RObject::Id *subEntityId=NULL) const
virtual QSharedPointer< RShape >	getClosestShape (const RVector &pos, double range=RNANDOUBLE, bool ignoreComplex=false, RObject::Id *subEntityId=NULL) const
RObject::Id	getClosestSubEntityId (const RVector &pos, double range, bool ignoreComplex) const
	Convenience function for scripts.
virtual RColor	getColor () const
virtual RColor	getColor (bool resolve, const QStack< QSharedPointer< REntity > > &blockRefStack) const
virtual RColor	getColor (const RColor &unresolvedColor, const QStack< QSharedPointer< REntity > > &blockRefStack) const
virtual RColor	getDisplayColor ()
RDocument *	getDocument ()
const RDocument *	getDocument () const
virtual int	getDrawOrder () const
virtual QList< RVector >	getEndPoints (const RBox &queryBox=RDEFAULT_RBOX, QList< RObject::Id > *subEntityIds=NULL) const
virtual RPolyline	getHull (double offset) const
virtual QList< RRefPoint >	getInternalReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop, QList< RObject::Id > *subEntityIds=NULL) const
	Can be overwritten to return internal, resolved reference points.
virtual QList< RVector >	getIntersectionPoints (const REntityData &other, bool limited=true, bool same=false, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true, QList< QPair< RObject::Id, RObject::Id > > *entityIds=NULL) const
virtual QList< RVector >	getIntersectionPoints (const RShape &shape, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true) const
RObject::Id	getLayerId () const
QString	getLayerName () const
virtual RObject::Id	getLinetypeId () const
virtual RObject::Id	getLinetypeId (bool resolve, const QStack< QSharedPointer< REntity > > &blockRefStack) const
virtual RLinetypePattern	getLinetypePattern () const
virtual double	getLinetypeScale () const
virtual RLineweight::Lineweight	getLineweight () const
virtual RLineweight::Lineweight	getLineweight (bool resolve, const QStack< QSharedPointer< REntity > > &blockRefStack) const
double	getLineweightInUnits (const QStack< QSharedPointer< REntity > > &blockRefStack) const
virtual QList< RVector >	getMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX, QList< RObject::Id > *subEntityIds=NULL) const
RObject::Id	getParentId () const
virtual QList< RVector >	getPointsWithDistanceToEnd (double distance, int from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX, QList< RObject::Id > *subEntityIds=NULL) const
virtual RVector	getVectorTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const
virtual bool	isInside (const RBox &box) const
virtual bool	isOnEntity (const RVector &point, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const
virtual bool	isPointType () const
virtual bool	isSelected () const
virtual bool	isSelectedWorkingSet () const
virtual bool	isUpdatesEnabled () const
virtual bool	mirror (const RVector &axis1, const RVector &axis2)
	REntityData (RDocument *document=NULL)
	Copyright (c) 2011-2018 by Andrew Mustun.
virtual bool	scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)
virtual void	scaleVisualProperties (double scaleFactor)
void	setAutoUpdatesBlocked (bool on)
virtual void	setBlockId (RObject::Id blockId)
void	setColor (const RColor &color)
void	setDocument (RDocument *document)
virtual void	setDrawOrder (int drawOrder)
	Sets the draw order of this entity.
virtual void	setLayerId (RObject::Id layerId)
void	setLayerName (const QString &layerName)
virtual void	setLinetypeId (RObject::Id linetypeId)
	Sets the linetype of this entity to the given linetype ID.
virtual void	setLinetypePattern (const RLinetypePattern &p)
virtual void	setLinetypeScale (double linetypeScale)
void	setLineweight (RLineweight::Lineweight lineweight)
virtual void	setParentId (RObject::Id parentId)
virtual void	setSelectedWorkingSet (bool on)
	Selects or deselects this entity for addition to the current working set.
void	setUpdatesEnabled (bool on)
	Enables / disables cache updates.
virtual void	setZ (double z)
virtual bool	stretch (const RPolyline &area, const RVector &offset)
	Stretches the end points of this entity that are inside area by offset.
virtual	~REntityData ()
Public Member Functions inherited from RPainterPathSource
virtual	~RPainterPathSource ()

Static Public Member Functions
static QString	escapeUnicode (const QString &str)
static RS::EntityType	getRtti ()
static RTextProxy *	getTextProxy ()
static bool	hasProxy ()
static void	setTextProxy (RTextProxy *p)
static QString	toEscapedText (const QTextDocument &textDocument, const RColor &initialColor, double fontHeightFactor=1.0, bool simpleText=false)
	Converts the given text document (typically from a QTextEdit) into CAD escaped text.
static QString	toRichText (const QString &escapedText, const QFont &mainFont, double fontHeightFactor=1.0)
Static Public Member Functions inherited from REntityData
static int	getDefaultDrawOrder ()

Protected Member Functions
	RTextBasedData (RDocument *document, const RTextBasedData &data)

Protected Attributes
RVector	alignmentPoint
double	angle
RBox	boundingBox
bool	dirty
RS::TextDrawingDirection	drawingDirection
TextFlags	flags
QString	fontFile
QString	fontName
bool	gotDraft
double	height
RS::HAlign	horizontalAlignment
double	lineSpacingFactor
RS::TextLineSpacingStyle	lineSpacingStyle
QList< RPainterPath >	painterPaths
RVector	position
QString	text
double	textHeight
QList< RTextLayout >	textLayouts
double	textWidth
RS::VAlign	verticalAlignment
double	width
double	xScale
Protected Attributes inherited from REntityData
bool	autoUpdatesBlocked
	Block auto updates is true during imports, undo and redo.
RObject::Id	blockId
RColor	color
RDocument *	document
int	drawOrder
RObject::Id	layerId
RObject::Id	linetypeId
double	linetypeScale
RLineweight::Lineweight	lineweight
RObject::Id	parentId
bool	selectionStatus
bool	selectionStatusWorkingSet
bool	updatesEnabled

Static Private Attributes
static RTextProxy *	textProxy = NULL
	Copyright (c) 2011-2018 by Andrew Mustun.

Friends
class	RTextBasedEntity

Detailed Description

Stores and manages all data that defines the geometry and appearance of a text based entity (text, block attribute, block attribute definition).

Scriptable:\nThis class is available in script environments.\n

Shared Pointer Support:\nObjects can be used in QSharedPointer.\n

Copyable:\nObjects are cleaned up automatically by the garbage collector of the script engine.\n

Member Enumeration Documentation

TextFlag

enum RTextBasedData::TextFlag

Enumerator
NoFlags
Bold
Italic
Simple
DimensionLabel
Highlighted
Backward
UpsideDown

Constructor & Destructor Documentation

RTextBasedData() [1/3]

RTextBasedData::RTextBasedData ( RDocument * document, const RTextBasedData & data )

protected

RTextBasedData() [2/3]

RTextBasedData::RTextBasedData

(

RDocument *

document = NULL

)

RTextBasedData() [3/3]

RTextBasedData::RTextBasedData	(	const RVector &	position,
		const RVector &	alignmentPoint,
		double	height,
		double	textWidth,
		RS::VAlign	valign,
		RS::HAlign	halign,
		RS::TextDrawingDirection	drawingDirection,
		RS::TextLineSpacingStyle	lineSpacingStyle,
		double	lineSpacingFactor,
		const QString &	text,
		const QString &	fontName,
		bool	bold,
		bool	italic,
		double	angle,
		bool	simple )

Parameters

position	Insertion point (see DXF code 10 doc).
alignmentPoint	Alignment point of text (see DXF code 11 doc).
height	Nominal (initial) text height
textWidth	Reference rectangle width for wrapping (not supported)
valign	Vertical alignment
halign	Horizontal alignment
drawingDirection	Drawing direction
lineSpacingStyle	Line spacing style
lineSpacingFactor	Line spacing factor
text	Text string
fontName	Text font name
angle	Rotation angle in rad

~RTextBasedData()

virtual RTextBasedData::~RTextBasedData ( )

inlinevirtual

Member Function Documentation

escapeUnicode()

QString RTextBasedData::escapeUnicode ( const QString & str )

static

flipHorizontal()

bool RTextBasedData::flipHorizontal ( )

virtual

Reimplemented from REntityData.

flipVertical()

bool RTextBasedData::flipVertical ( )

virtual

Reimplemented from REntityData.

getAlignmentPoint()

RVector RTextBasedData::getAlignmentPoint ( ) const

inline

Returns

Alignment point of the reference point of the text. This is usually the same as the position.

getAngle()

double RTextBasedData::getAngle ( ) const

inline

getBoundingBox()

RBox RTextBasedData::getBoundingBox ( bool ignoreEmpty = false ) const

virtual

Returns

The bounding box that contains this entity.

Reimplemented from REntityData.

getCenterPoints()

virtual QList< RVector > RTextBasedData::getCenterPoints ( const RBox & queryBox = RDEFAULT_RBOX ) const

inlinevirtual

getClosestPointOnEntity()

RVector RTextBasedData::getClosestPointOnEntity ( const RVector & point, double range, bool limited ) const

virtual

getClosestShape()

virtual QSharedPointer< RShape > RTextBasedData::getClosestShape ( const RVector & pos, double range = RNANDOUBLE, bool ignoreComplex = false ) const

inlinevirtual

getDistanceTo()

double RTextBasedData::getDistanceTo ( const RVector & point, bool limited = true, double range = 0.0, bool draft = false, double strictRange = RMAXDOUBLE ) const

virtual

Returns

The shortest distance from this entity to the given point.

Parameters

limited	Limit lines, arcs at end points, otherwise the orthogonal distance to the unlimited line / circle is returned.
range	This is returned for solid filled entities (solid filled or dense hatches, text entities) if the point is on the entity and the distance would be zero.
draft	Calculate based on draft mode representation of the entity.
strictRange	If limited, this is the maximum range from either end point of the entity. Zero to only return distances that are strictly orthogonal to the entity.

Reimplemented from REntityData.

getDrawingDirection()

RS::TextDrawingDirection RTextBasedData::getDrawingDirection ( ) const

inline

getEndPoints()

virtual QList< RVector > RTextBasedData::getEndPoints ( const RBox & queryBox = RDEFAULT_RBOX ) const

inlinevirtual

getEscapedText()

QString RTextBasedData::getEscapedText ( bool escapeUnicode = false ) const

virtual

getExploded()

QList< QSharedPointer< RShape > > RTextBasedData::getExploded ( ) const

virtual

getFlag()

bool RTextBasedData::getFlag ( RTextBasedData::TextFlag flag ) const

inline

getFontFile()

QString RTextBasedData::getFontFile ( ) const

inline

getFontName()

QString RTextBasedData::getFontName ( ) const

inline

getHAlign()

RS::HAlign RTextBasedData::getHAlign ( ) const

inline

getHeight()

double RTextBasedData::getHeight

(

)

const

Height of the text (this is not equal to the bounding box height as it is the height of the text at 0 angle).

getLineSpacingFactor()

double RTextBasedData::getLineSpacingFactor ( ) const

inline

getLineSpacingStyle()

RS::TextLineSpacingStyle RTextBasedData::getLineSpacingStyle ( ) const

inline

getMainFont()

QFont RTextBasedData::getMainFont ( ) const

virtual

getMiddlePoints()

virtual QList< RVector > RTextBasedData::getMiddlePoints ( const RBox & queryBox = RDEFAULT_RBOX ) const

inlinevirtual

getPainterPaths()

QList< RPainterPath > RTextBasedData::getPainterPaths ( bool draft = false, double pixelSizeHint = RDEFAULT_MIN1 ) const

virtual

Implements RPainterPathSource.

getPlainText()

QString RTextBasedData::getPlainText ( ) const

virtual

getPointOnEntity()

RVector RTextBasedData::getPointOnEntity ( ) const

virtual

Returns

A point that is on the entity. Used to check if an entity is inside a polygon.

Reimplemented from REntityData.

getPointsWithDistanceToEnd()

virtual QList< RVector > RTextBasedData::getPointsWithDistanceToEnd ( double distance, int from = RS::FromAny, const RBox & queryBox = RDEFAULT_RBOX ) const

inlinevirtual

getPosition()

RVector RTextBasedData::getPosition ( ) const

inline

Returns

Position of the reference point of the text.

getReferencePoints()

QList< RRefPoint > RTextBasedData::getReferencePoints ( RS::ProjectionRenderingHint hint = RS::RenderTop ) const

virtual

Returns

Vector of reference points of this entity. Reference points can usually be moved around by the user to change the geometry of the entity.

Implements REntityData.

Reimplemented in RAttributeData.

getRenderedText()

QString RTextBasedData::getRenderedText ( bool escapeUnicode = false ) const

virtual

Reimplemented in RAttributeData, and RAttributeDefinitionData.

getRotatedBoundingBox()

QList< RVector > RTextBasedData::getRotatedBoundingBox

(

)

const

getRtti()

static RS::EntityType RTextBasedData::getRtti ( )

inlinestatic

getShapes()

QList< QSharedPointer< RShape > > RTextBasedData::getShapes ( const RBox & queryBox = RDEFAULT_RBOX, bool ignoreComplex = false, bool segment = false, QList< RObject::Id > * entityIds = NULL ) const

virtual

Returns

Shapes that represent the geometry of this entity.

Parameters

queryBox	Limit returned shapes to query box
ignoreComplex	Ignore complex shapes and explode those into simple shapes
segment	Split up splines into spline segments

Reimplemented from REntityData.

getSimpleTextBlocks()

QList< RTextBasedData > RTextBasedData::getSimpleTextBlocks

(

)

Returns

List of text data objects representing simple texts. Complex formatted texts are split up into smaller text blocks, each with unique formatting, color, etc.

getText()

virtual QString RTextBasedData::getText ( ) const

inlinevirtual

getTextHeight()

double RTextBasedData::getTextHeight ( ) const

inline

getTextLayouts()

QList< RTextLayout > RTextBasedData::getTextLayouts

(

)

const

getTextProxy()

static RTextProxy * RTextBasedData::getTextProxy ( )

inlinestatic

Non-Scriptable:\nThis function is not available in script environments.\n

getTextWidth()

double RTextBasedData::getTextWidth ( ) const

inline

Width of the text box used for line wrapping.

getType()

virtual RS::EntityType RTextBasedData::getType ( ) const

inlinevirtual

Reimplemented from REntityData.

Reimplemented in RAttributeData, RAttributeDefinitionData, and RTextData.

getVAlign()

RS::VAlign RTextBasedData::getVAlign ( ) const

inline

getWidth()

double RTextBasedData::getWidth

(

)

const

Width of the text (this is not equal to the bounding box width as it is the width of the text at 0 angle).

getXScale()

double RTextBasedData::getXScale ( ) const

inline

hasProxy()

static bool RTextBasedData::hasProxy ( )

inlinestatic

intersectsWith()

bool RTextBasedData::intersectsWith ( const RShape & shape ) const

virtual

Returns

True if this entity intersects with the given shape, false otherwise.

Todo

better to pass another entity data object?

Reimplemented from REntityData.

isBackward()

bool RTextBasedData::isBackward ( ) const

inline

isBold()

bool RTextBasedData::isBold ( ) const

inline

isDimensionLabel()

bool RTextBasedData::isDimensionLabel ( ) const

inline

isDirty()

bool RTextBasedData::isDirty ( ) const

virtual

isHighlighted()

bool RTextBasedData::isHighlighted ( ) const

inline

isItalic()

bool RTextBasedData::isItalic ( ) const

inline

isSane()

bool RTextBasedData::isSane ( ) const

virtual

Reimplemented from REntityData.

isSimple()

bool RTextBasedData::isSimple ( ) const

inline

isUpsideDown()

bool RTextBasedData::isUpsideDown ( ) const

inline

isValid()

virtual bool RTextBasedData::isValid ( ) const

inlinevirtual

Reimplemented from REntityData.

mirror()

bool RTextBasedData::mirror ( const RLine & axis )

virtual

Reimplemented from REntityData.

move()

bool RTextBasedData::move ( const RVector & offset )

virtual

Moves this entity by the given offset.

Reimplemented from REntityData.

moveReferencePoint()

bool RTextBasedData::moveReferencePoint ( const RVector & referencePoint, const RVector & targetPoint, Qt::KeyboardModifiers modifiers = Qt::NoModifier )

virtual

Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.

Returns

True if a reference point has been moved successfully, false otherwise.

Implements REntityData.

rotate()

bool RTextBasedData::rotate ( double rotation, const RVector & center )

virtual

Reimplemented from REntityData.

scale()

bool RTextBasedData::scale ( const RVector & scaleFactors, const RVector & center )

virtual

Reimplemented from REntityData.

setAlignmentPoint()

void RTextBasedData::setAlignmentPoint ( const RVector & alignmentPoint )

inline

setAngle()

void RTextBasedData::setAngle ( double angle )

inline

setBackward()

void RTextBasedData::setBackward ( bool on )

inline

setBold()

void RTextBasedData::setBold ( bool on )

inline

setDimensionLabel()

void RTextBasedData::setDimensionLabel ( bool on )

inline

setDrawingDirection()

void RTextBasedData::setDrawingDirection ( RS::TextDrawingDirection drawingDirection )

inline

setFlag()

void RTextBasedData::setFlag ( RTextBasedData::TextFlag flag, bool on = true )

inline

setFontFile()

void RTextBasedData::setFontFile ( const QString & fontFile )

inline

setFontName()

void RTextBasedData::setFontName

(

const QString &

fontName

)

setHAlign()

void RTextBasedData::setHAlign ( RS::HAlign halign )

inline

setHighlighted()

void RTextBasedData::setHighlighted ( bool on )

inline

setItalic()

void RTextBasedData::setItalic ( bool on )

inline

setLineSpacingFactor()

void RTextBasedData::setLineSpacingFactor ( double lineSpacingFactor )

inline

setLineSpacingStyle()

void RTextBasedData::setLineSpacingStyle ( RS::TextLineSpacingStyle lineSpacingStyle )

inline

setPosition()

void RTextBasedData::setPosition ( const RVector & position )

inline

setSelected()

void RTextBasedData::setSelected ( bool on )

inlinevirtual

Selects or deselects this entity.

Reimplemented from REntityData.

setSimple()

void RTextBasedData::setSimple ( bool on )

inline

setText()

void RTextBasedData::setText

(

const QString &

text

)

setTextHeight()

void RTextBasedData::setTextHeight ( double h )

inline

setTextProxy()

static void RTextBasedData::setTextProxy ( RTextProxy * p )

inlinestatic

Non-Scriptable:\nThis function is not available in script environments.\n

setTextWidth()

void RTextBasedData::setTextWidth ( double w )

inline

setUpsideDown()

void RTextBasedData::setUpsideDown ( bool on )

inline

setVAlign()

void RTextBasedData::setVAlign ( RS::VAlign valign )

inline

setXScale()

void RTextBasedData::setXScale ( double xScale )

inline

sync()

void RTextBasedData::sync

(

const RTextBasedData &

other

)

to2D()

void RTextBasedData::to2D ( )

virtual

HTML helper function.

HTML helper function.

HTML helper function.

HTML helper function.

HTML helper function.

HTML helper function.

HTML helper function.

HTML helper function.

Reimplemented from REntityData.

toEscapedText()

QString RTextBasedData::toEscapedText ( const QTextDocument & textDocument, const RColor & initialColor, double fontHeightFactor = 1.0, bool simpleText = false )

static

Converts the given text document (typically from a QTextEdit) into CAD escaped text.

Parameters

fontHeightFactor

factor applied to all font heights. This allows the text edit to use a bigger / smaller font that needed in the end.

toRichText()

QString RTextBasedData::toRichText ( const QString & escapedText, const QFont & mainFont, double fontHeightFactor = 1.0 )

static

Returns

HTML representing this text.

update() [1/2]

virtual void RTextBasedData::update ( ) const

inlinevirtual

Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).

Reimplemented from REntityData.

update() [2/2]

void RTextBasedData::update ( bool layout ) const

virtual

Friends And Related Symbol Documentation

RTextBasedEntity

friend class RTextBasedEntity

friend

Member Data Documentation

alignmentPoint

RVector RTextBasedData::alignmentPoint

protected

angle

double RTextBasedData::angle

protected

boundingBox

RBox RTextBasedData::boundingBox

mutableprotected

dirty

bool RTextBasedData::dirty

mutableprotected

drawingDirection

RS::TextDrawingDirection RTextBasedData::drawingDirection

protected

flags

TextFlags RTextBasedData::flags

protected

fontFile

QString RTextBasedData::fontFile

protected

fontName

QString RTextBasedData::fontName

protected

gotDraft

bool RTextBasedData::gotDraft

mutableprotected

height

double RTextBasedData::height

mutableprotected

horizontalAlignment

RS::HAlign RTextBasedData::horizontalAlignment

protected

lineSpacingFactor

double RTextBasedData::lineSpacingFactor

protected

lineSpacingStyle

RS::TextLineSpacingStyle RTextBasedData::lineSpacingStyle

protected

painterPaths

QList<RPainterPath> RTextBasedData::painterPaths

mutableprotected

position

RVector RTextBasedData::position

protected

text

QString RTextBasedData::text

protected

textHeight

double RTextBasedData::textHeight

protected

textLayouts

QList<RTextLayout> RTextBasedData::textLayouts

mutableprotected

textProxy

RTextProxy * RTextBasedData::textProxy = NULL

staticprivate

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

textWidth

double RTextBasedData::textWidth

protected

verticalAlignment

RS::VAlign RTextBasedData::verticalAlignment

protected

width

double RTextBasedData::width

mutableprotected

xScale

double RTextBasedData::xScale

protected

---

The documentation for this class was generated from the following files:

• src/core/RTextBasedData.h
• src/core/RTextBasedData.cpp
