ON_Annotation2 Class Reference

#include <opennurbs_annotation2.h>

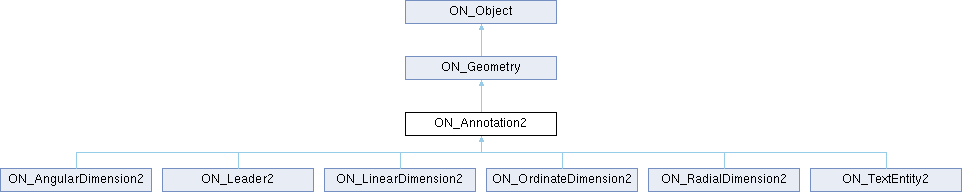

Inheritance diagram for ON_Annotation2:
ON_Geometry ON_Object ON_AngularDimension2 ON_Leader2 ON_LinearDimension2 ON_OrdinateDimension2 ON_RadialDimension2 ON_TextEntity2

Public Types

enum  eTextJustification {
  tjUndefined = 0 , tjLeft = 1<<0 , tjCenter = 1<<1 , tjRight = 1<<2 ,
  tjBottom = 1<<16 , tjMiddle = 1<<17 , tjTop = 1<<18 , tjBottomLeft = tjBottom | tjLeft ,
  tjBottomCenter = tjBottom | tjCenter , tjBottomRight = tjBottom | tjRight , tjMiddleLeft = tjMiddle | tjLeft , tjMiddleCenter = tjMiddle | tjCenter ,
  tjMiddleRight = tjMiddle | tjRight , tjTopLeft = tjTop | tjLeft , tjTopCenter = tjTop | tjCenter , tjTopRight = tjTop | tjRight
}


Public Member Functions

virtual void ConvertBack (ON_Annotation &target)

void Create ()

void Destroy ()

int Dimension () const

void EmergencyDestroy ()

bool EvaluatePoint (const class ON_ObjRef &objref, ON_3dPoint &P) const

ON_BOOL32 GetECStoWCSXform (ON_Xform &) const

bool GetTextPoint (ON_2dPoint &text_2d_point) const

bool GetTextXform (const ON_RECT gdi_text_rect, const ON_Font &font, const ON_DimStyle &dimstyle, double dimscale, const ON_Viewport *vp, const ON_Xform *model_xform, ON_Xform &text_xform) const

bool GetTextXform (ON_RECT gdi_text_rect, const ON_Font &font, const ON_DimStyle &dimstyle, double dimscale, const ON_Viewport *vp, ON_Xform &xform) const

bool GetTextXform (ON_RECT gdi_text_rect, int gdi_height_of_I, double dimstyle_textheight, double dimstyle_textgap, ON::eTextDisplayMode dimstyle_textalignment, double dimscale, ON_3dVector cameraX, ON_3dVector cameraY, const ON_Xform *model_xform, ON_Xform &text_xform) const

bool GetTextXform (ON_RECT gdi_text_rect, int gdi_height_of_I, double dimstyle_textheight, double dimstyle_textgap, ON::eTextDisplayMode dimstyle_textalignment, double dimscale, ON_3dVector cameraX, ON_3dVector cameraY, ON_Xform &xform) const

ON_BOOL32 GetWCStoECSXform (ON_Xform &xform) const

double Height () const

int Index () const

bool IsDimension () const

bool IsLeader () const

bool IsText () const

ON_BOOL32 IsValid (ON_TextLog *text_log=NULL) const

virtual unsigned int Justification ()

virtual double NumericValue () const

ON::object_type ObjectType () const

 ON_Annotation2 ()

 ON_Annotation2 (const ON_Annotation &)

ON_Annotation2 & operator= (const ON_Annotation &)

const ON_Plane & Plane () const

ON_2dPoint Point (int) const

int PointCount () const

const ON_2dPointArray & Points () const

ON_BOOL32 Read (ON_BinaryArchive &)

void ReservePoints (int)

void SetHeight (double)

void SetIndex (int)

virtual void SetJustification (unsigned int justification)

void SetPlane (const ON_Plane &)

void SetPoint (int, const ON_2dPoint &)

void SetPointCount (int count)

void SetPoints (const ON_2dPointArray &)

void SetTextDisplayMode (ON::eTextDisplayMode)

void SetType (ON::eAnnotationType)

void SetUserPositionedText (int bUserPositionedText)

void SetUserText (const wchar_t *)

ON::eTextDisplayMode TextDisplayMode () const

ON_BOOL32 Transform (const ON_Xform &xform)

ON::eAnnotationType Type () const

bool UserPositionedText () const

const ON_wString & UserText () const

ON_BOOL32 Write (ON_BinaryArchive &) const

 ~ON_Annotation2 ()

- Public Member Functions inherited from ON_Geometry
ON_BoundingBox BoundingBox () const

virtual ON_Brep * BrepForm (ON_Brep *brep=NULL) const

virtual void ClearBoundingBox ()

virtual ON_COMPONENT_INDEX ComponentIndex () const

virtual ON_BOOL32 GetBBox (double *boxmin, double *boxmax, int bGrowBox=false) const =0

ON_BOOL32 GetBoundingBox (ON_3dPoint &bbox_min, ON_3dPoint &bbox_max, int bGrowBox=false) const

ON_BOOL32 GetBoundingBox (ON_BoundingBox &bbox, int bGrowBox=false) const

virtual bool GetTightBoundingBox (ON_BoundingBox &tight_bbox, int bGrowBox=false, const ON_Xform *xform=0) const

virtual ON_BOOL32 HasBrepForm () const

virtual bool IsDeformable () const

virtual bool IsMorphable () const

virtual bool MakeDeformable ()

virtual bool Morph (const ON_SpaceMorph &morph)

 ON_Geometry ()

 ON_Geometry (const ON_Geometry &)

ON_Geometry & operator= (const ON_Geometry &)

ON_BOOL32 Rotate (double rotation_angle, const ON_3dVector &rotation_axis, const ON_3dPoint &rotation_center)

ON_BOOL32 Rotate (double sin_angle, double cos_angle, const ON_3dVector &rotation_axis, const ON_3dPoint &rotation_center)

ON_BOOL32 Scale (double scale_factor)

virtual ON_BOOL32 SwapCoordinates (int i, int j)

ON_BOOL32 Translate (const ON_3dVector &translation_vector)

virtual ~ON_Geometry ()

- Public Member Functions inherited from ON_Object
ON_BOOL32 AttachUserData (ON_UserData *pUserData)

bool CopyFrom (const ON_Object *src)

void CopyUserData (const ON_Object &source_object)

virtual ON__UINT32 DataCRC (ON__UINT32 current_remainder) const

virtual void DestroyRuntimeCache (bool bDelete=true)

ON_BOOL32 DetachUserData (ON_UserData *pUserData)

virtual void Dump (ON_TextLog &) const

ON_UserData * FirstUserData () const

ON_UserData * GetUserData (const ON_UUID &userdata_uuid) const

bool GetUserString (const wchar_t *key, ON_wString &string_value) const

int GetUserStringKeys (ON_ClassArray< ON_wString > &user_string_keys) const

int GetUserStrings (ON_ClassArray< ON_UserString > &user_strings) const

ON_BOOL32 IsKindOf (const ON_ClassId *pClassId) const

virtual void MemoryRelocate ()

virtual ON_UUID ModelObjectId () const

void MoveUserData (ON_Object &source_object)

 ON_Object ()

 ON_Object (const ON_Object &)

ON_Object & operator= (const ON_Object &)

void PurgeUserData ()

bool SetUserString (const wchar_t *key, const wchar_t *string_value)

virtual unsigned int SizeOf () const

void TransformUserData (const ON_Xform &xform)

virtual ~ON_Object ()


Static Public Member Functions

static const wchar_t * DefaultText ()


Public Attributes

int m_index

unsigned int m_justification

ON_Plane m_plane

ON_2dPointArray m_points

ON::eTextDisplayMode m_textdisplaymode

double m_textheight

ON::eAnnotationType m_type

bool m_userpositionedtext

ON_Annotation2Text m_usertext

- Public Attributes inherited from ON_Object
ON_MEMORY_POOL * m_mempool


Private Types

enum  SYMBOLS { degreesym = 176 , radiussym = L'R' , diametersym = 216 , plusminussym = 177 }


Private Member Functions

 ON_OBJECT_DECLARE (ON_Annotation2)


Member Enumeration Documentation

◆ eTextJustification

enum ON_Annotation2::eTextJustification
Enumerator
tjUndefined
tjLeft
tjCenter
tjRight
tjBottom
tjMiddle
tjTop
tjBottomLeft
tjBottomCenter
tjBottomRight
tjMiddleLeft
tjMiddleCenter
tjMiddleRight
tjTopLeft
tjTopCenter
tjTopRight

◆ SYMBOLS

enum ON_Annotation2::SYMBOLS
private
Enumerator
degreesym
radiussym
diametersym
plusminussym

Constructor & Destructor Documentation

◆ ON_Annotation2() [1/2]

ON_Annotation2::ON_Annotation2 ( )

◆ ~ON_Annotation2()

ON_Annotation2::~ON_Annotation2 ( )

◆ ON_Annotation2() [2/2]

ON_Annotation2::ON_Annotation2 ( const ON_Annotation & src)

Member Function Documentation

◆ ConvertBack()

void ON_Annotation2::ConvertBack ( ON_Annotation & target)
virtual

◆ Create()

void ON_Annotation2::Create ( )

◆ DefaultText()

const wchar_t * ON_Annotation2::DefaultText ( )
static

◆ Destroy()

void ON_Annotation2::Destroy ( )

◆ Dimension()

int ON_Annotation2::Dimension ( ) const
virtual

Implements ON_Geometry.

◆ EmergencyDestroy()

void ON_Annotation2::EmergencyDestroy ( )

◆ EvaluatePoint()

bool ON_Annotation2::EvaluatePoint ( const class ON_ObjRef & objref,
ON_3dPoint & P ) const
virtual

Reimplemented from ON_Geometry.

◆ GetECStoWCSXform()

ON_BOOL32 ON_Annotation2::GetECStoWCSXform ( ON_Xform & xform) const

◆ GetTextPoint()

bool ON_Annotation2::GetTextPoint ( ON_2dPoint & text_2d_point) const

◆ GetTextXform() [1/4]

bool ON_Annotation2::GetTextXform ( const ON_RECT gdi_text_rect,
const ON_Font & font,
const ON_DimStyle & dimstyle,
double dimscale,
const ON_Viewport * vp,
const ON_Xform * model_xform,
ON_Xform & text_xform ) const

◆ GetTextXform() [2/4]

bool ON_Annotation2::GetTextXform ( ON_RECT gdi_text_rect,
const ON_Font & font,
const ON_DimStyle & dimstyle,
double dimscale,
const ON_Viewport * vp,
ON_Xform & xform ) const

◆ GetTextXform() [3/4]

bool ON_Annotation2::GetTextXform ( ON_RECT gdi_text_rect,
int gdi_height_of_I,
double dimstyle_textheight,
double dimstyle_textgap,
ON::eTextDisplayMode dimstyle_textalignment,
double dimscale,
ON_3dVector cameraX,
ON_3dVector cameraY,
const ON_Xform * model_xform,
ON_Xform & text_xform ) const

◆ GetTextXform() [4/4]

bool ON_Annotation2::GetTextXform ( ON_RECT gdi_text_rect,
int gdi_height_of_I,
double dimstyle_textheight,
double dimstyle_textgap,
ON::eTextDisplayMode dimstyle_textalignment,
double dimscale,
ON_3dVector cameraX,
ON_3dVector cameraY,
ON_Xform & xform ) const

◆ GetWCStoECSXform()

ON_BOOL32 ON_Annotation2::GetWCStoECSXform ( ON_Xform & xform) const

◆ Height()

double ON_Annotation2::Height ( ) const

◆ Index()

int ON_Annotation2::Index ( ) const

◆ IsDimension()

bool ON_Annotation2::IsDimension ( ) const

◆ IsLeader()

bool ON_Annotation2::IsLeader ( ) const

◆ IsText()

bool ON_Annotation2::IsText ( ) const

◆ IsValid()

ON_BOOL32 ON_Annotation2::IsValid ( ON_TextLog * text_log = NULL) const
virtual

Implements ON_Object.

Reimplemented in ON_LinearDimension2, ON_RadialDimension2, ON_OrdinateDimension2, ON_TextEntity2, and ON_Leader2.

◆ Justification()

unsigned int ON_Annotation2::Justification ( )
virtual

Reimplemented in ON_TextEntity2.

◆ NumericValue()

double ON_Annotation2::NumericValue ( ) const
virtual

Reimplemented in ON_LinearDimension2, ON_RadialDimension2, ON_AngularDimension2, and ON_OrdinateDimension2.

◆ ObjectType()

ON::object_type ON_Annotation2::ObjectType ( ) const
virtual

Reimplemented from ON_Object.

◆ ON_OBJECT_DECLARE()

ON_Annotation2::ON_OBJECT_DECLARE ( ON_Annotation2 )
private

◆ operator=()

ON_Annotation2 & ON_Annotation2::operator= ( const ON_Annotation & src)

◆ Plane()

const ON_Plane & ON_Annotation2::Plane ( ) const

◆ Point()

ON_2dPoint ON_Annotation2::Point ( int idx) const

◆ PointCount()

int ON_Annotation2::PointCount ( ) const

◆ Points()

const ON_2dPointArray & ON_Annotation2::Points ( ) const

◆ Read()

ON_BOOL32 ON_Annotation2::Read ( ON_BinaryArchive & file)
virtual

Reimplemented from ON_Object.

Reimplemented in ON_LinearDimension2, ON_RadialDimension2, ON_TextEntity2, ON_Leader2, and ON_OrdinateDimension2.

◆ ReservePoints()

void ON_Annotation2::ReservePoints ( int count)

◆ SetHeight()

void ON_Annotation2::SetHeight ( double ht)

◆ SetIndex()

void ON_Annotation2::SetIndex ( int index)

◆ SetJustification()

void ON_Annotation2::SetJustification ( unsigned int justification)
virtual

Reimplemented in ON_TextEntity2.

◆ SetPlane()

void ON_Annotation2::SetPlane ( const ON_Plane & plane)

◆ SetPoint()

void ON_Annotation2::SetPoint ( int idx,
const ON_2dPoint & point )

◆ SetPointCount()

void ON_Annotation2::SetPointCount ( int count)

◆ SetPoints()

void ON_Annotation2::SetPoints ( const ON_2dPointArray & points)

◆ SetTextDisplayMode()

void ON_Annotation2::SetTextDisplayMode ( ON::eTextDisplayMode mode)

◆ SetType()

void ON_Annotation2::SetType ( ON::eAnnotationType type)

◆ SetUserPositionedText()

void ON_Annotation2::SetUserPositionedText ( int bUserPositionedText)

◆ SetUserText()

void ON_Annotation2::SetUserText ( const wchar_t * string)

◆ TextDisplayMode()

ON::eTextDisplayMode ON_Annotation2::TextDisplayMode ( ) const

◆ Transform()

ON_BOOL32 ON_Annotation2::Transform ( const ON_Xform & xform)
virtual

Reimplemented from ON_Geometry.

Reimplemented in ON_LinearDimension2, ON_RadialDimension2, ON_OrdinateDimension2, ON_TextEntity2, and ON_Leader2.

◆ Type()

ON::eAnnotationType ON_Annotation2::Type ( ) const

◆ UserPositionedText()

bool ON_Annotation2::UserPositionedText ( ) const

◆ UserText()

const ON_wString & ON_Annotation2::UserText ( ) const

◆ Write()

ON_BOOL32 ON_Annotation2::Write ( ON_BinaryArchive & file) const
virtual

Reimplemented from ON_Object.

Reimplemented in ON_LinearDimension2, ON_RadialDimension2, ON_TextEntity2, ON_Leader2, and ON_OrdinateDimension2.

Member Data Documentation

◆ m_index

int ON_Annotation2::m_index

◆ m_justification

unsigned int ON_Annotation2::m_justification

◆ m_plane

ON_Plane ON_Annotation2::m_plane

◆ m_points

ON_2dPointArray ON_Annotation2::m_points

◆ m_textdisplaymode

ON::eTextDisplayMode ON_Annotation2::m_textdisplaymode

◆ m_textheight

double ON_Annotation2::m_textheight

◆ m_type

ON::eAnnotationType ON_Annotation2::m_type

◆ m_userpositionedtext

bool ON_Annotation2::m_userpositionedtext

◆ m_usertext

ON_Annotation2Text ON_Annotation2::m_usertext
The documentation for this class was generated from the following files:
