#include <RPoint.h>

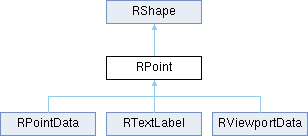

Inheritance diagram for RPoint:

Public Member Functions
virtual RPoint *	clone () const

virtual bool	flipHorizontal ()

virtual bool	flipVertical ()

virtual double	getAngleAt (double distance, RS::From from=RS::FromStart) const

virtual RBox	getBoundingBox () const

virtual QList< RVector >	getCenterPoints () const

virtual QList< RVector >	getEndPoints () const

virtual double	getLength () const

virtual QList< RVector >	getMiddlePoints () const

virtual QList< RVector >	getPointCloud (double segmentLength) const

virtual QList< RVector >	getPointsWithDistanceToEnd (double distance, int from=RS::FromAny) const

RVector	getPosition () const

virtual RShape::Type	getShapeType () const

virtual QSharedPointer< RShape >	getTransformed (const QTransform &transform) const

virtual QList< RVector >	getVectorProperties () const

virtual RVector	getVectorTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual bool	mirror (const RLine &axis)

virtual bool	move (const RVector &offset)

virtual bool	rotate (double rotation, const RVector &center=RDEFAULT_RVECTOR)

	RPoint ()
	Copyright (c) 2011-2018 by Andrew Mustun. More...

	RPoint (const RVector &position)
	Creates a point object with the given position. More...

	RPoint (double x, double y)

virtual bool	scale (const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

void	setPosition (const RVector &p)

virtual void	setZ (double z)

virtual	~RPoint ()

Public Member Functions inherited from RShape
void	dump () const

virtual bool	equals (const RShape &other, double tolerance=RS::PointTolerance) const

virtual QList< RVector >	filterOnShape (const QList< RVector > &pointList, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual double	getAngleAtPercent (double p) const

virtual double	getAngleAtPoint (const RVector &pos) const

virtual QList< RVector >	getArcReferencePoints () const

virtual QList< bool >	getBoolProperties () const

virtual RVector	getClosestPointOnShape (const RVector &p, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual double	getDirection1 () const

virtual double	getDirection2 () const

virtual double	getDistanceFromStart (const RVector &p) const

virtual QList< double >	getDistancesFromStart (const RVector &p) const

virtual double	getDistanceTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual QList< double >	getDoubleProperties () const

virtual RVector	getEndPoint () const

QList< RVector >	getIntersectionPoints (const RShape &other, bool limited=true, bool same=false, bool force=false) const

virtual QList< int >	getIntProperties () const

virtual double	getMaxDistanceTo (const QList< RVector > &points, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual RVector	getMiddlePoint () const

virtual QList< QSharedPointer< RShape > >	getOffsetShapes (double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

virtual RVector	getPointAtPercent (double p) const

virtual RVector	getPointOnShape () const

virtual RVector	getPointWithDistanceToEnd (double distance) const

virtual RVector	getPointWithDistanceToStart (double distance) const

virtual QList< RVector >	getSelfIntersectionPoints () const

virtual RS::Side	getSideOfPoint (const RVector &point) const

virtual RVector	getStartPoint () const

virtual RS::Ending	getTrimEnd (const RVector &trimPoint, const RVector &clickPoint)

virtual RVector	getVectorFromEndpointTo (const RVector &point) const

virtual bool	intersectsWith (const RShape &other, bool limited=true) const

virtual bool	isDirected () const

virtual bool	isInterpolated () const
	Reimplement and return true if this shape relies on interpolation for geometrical operations such as finding intersection points. More...

virtual bool	isOnShape (const RVector &point, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual bool	reverse ()

	RShape ()

virtual bool	scale (double scaleFactor, const RVector &center=RVector())

virtual QList< QSharedPointer< RShape > >	splitAt (const QList< RVector > &points) const

virtual bool	stretch (const RBox &area, const RVector &offset)

virtual bool	stretch (const RPolyline &area, const RVector &offset)

virtual void	to2D ()
	Flattens this shape to the X/Y plane. More...

virtual bool	trimEndPoint (const RVector &trimPoint, const RVector &clickPoint=RVector::invalid, bool extend=false)

virtual bool	trimEndPoint (double trimDist)

virtual bool	trimStartPoint (const RVector &trimPoint, const RVector &clickPoint=RVector::invalid, bool extend=false)

virtual bool	trimStartPoint (double trimDist)

virtual	~RShape ()

Public Attributes
RVector	position
	Getter function for this property: getPosition Setter function for this property: setPosition More...

Protected Member Functions
virtual void	print (QDebug dbg) const

Additional Inherited Members
Public Types inherited from RShape
enum	Type { Unknown = -1, Point = 0, Line = 1, Arc = 2, Circle = 3, Ellipse = 4, Polyline = 5, Spline = 6, Triangle = 7, XLine = 8, Ray = 9 }

Static Public Member Functions inherited from RShape
static const RExplodable *	castToExplodable (const RShape *shape)

static QSharedPointer< RShape >	ellipseToArcCircleEllipse (const REllipse &ellipse)

static int	getErrorCode ()

static QList< RVector >	getIntersectionPoints (const RShape &shape1, const RShape &shape2, bool limited=true, bool same=false, bool force=false)

static QList< RVector >	getIntersectionPointsAA (const RArc &arc1, const RArc &arc2, bool limited=true)

static QList< RVector >	getIntersectionPointsAC (const RArc &arc1, const RCircle &circle2, bool limited=true)

static QList< RVector >	getIntersectionPointsAE (const RArc &arc1, const REllipse &ellipse2, bool limited=true)

static QList< RVector >	getIntersectionPointsAS (const RArc &arc1, const RSpline &spline2, bool limited=true)

static QList< RVector >	getIntersectionPointsAT (const RArc &arc1, const RTriangle &triangle2, bool limited=true)

static QList< RVector >	getIntersectionPointsAX (const RArc &arc1, const RExplodable &explodable2, bool limited=true)

static QList< RVector >	getIntersectionPointsCC (const RCircle &circle1, const RCircle &circle2)

static QList< RVector >	getIntersectionPointsCE (const RCircle &circle1, const REllipse &ellipse2)

static QList< RVector >	getIntersectionPointsCS (const RCircle &circle1, const RSpline &spline2, bool limited=true)

static QList< RVector >	getIntersectionPointsCX (const RCircle &circle1, const RExplodable &explodable2, bool limited=true)

static QList< RVector >	getIntersectionPointsEE (const REllipse &ellipse1, const REllipse &ellipse2)
	Based on "Hughes and Chraibi (2011-2012), Calculating Ellipse Overlap Areas". More...

static QList< RVector >	getIntersectionPointsEE (const REllipse &ellipse1, const REllipse &ellipse2, bool limited)

static QList< RVector >	getIntersectionPointsES (const REllipse &ellipse1, const RSpline &spline2, bool limited=true)

static QList< RVector >	getIntersectionPointsEX (const REllipse &ellipse1, const RExplodable &explodable2, bool limited=true)

static QList< RVector >	getIntersectionPointsLA (const RLine &line1, const RArc &arc2, bool limited1, bool limited2)

static QList< RVector >	getIntersectionPointsLA (const RLine &line1, const RArc &arc2, bool limited=true)

static QList< RVector >	getIntersectionPointsLC (const RLine &line1, const RCircle &circle2, bool limited=true)

static QList< RVector >	getIntersectionPointsLE (const RLine &line1, const REllipse &ellipse2, bool limited1, bool limited2)

static QList< RVector >	getIntersectionPointsLE (const RLine &line1, const REllipse &ellipse2, bool limited=true)

static QList< RVector >	getIntersectionPointsLL (const RLine &line1, const RLine &line2, bool limited1, bool limited2)

static QList< RVector >	getIntersectionPointsLL (const RLine &line1, const RLine &line2, bool limited=true)

static QList< RVector >	getIntersectionPointsLS (const RLine &line1, const RSpline &spline2, bool limited=true)

static QList< RVector >	getIntersectionPointsLT (const RLine &line1, const RTriangle &triangle2, bool limited1, bool limited2)

static QList< RVector >	getIntersectionPointsLT (const RLine &line1, const RTriangle &triangle2, bool limited=true)

static QList< RVector >	getIntersectionPointsLX (const RLine &line1, const RExplodable &explodable2, bool limited=true)

static QList< RVector >	getIntersectionPointsSS (const RSpline &spline1, const RSpline &spline2, bool limited=true, bool same=false)

static QList< RVector >	getIntersectionPointsSX (const RSpline &spline1, const RExplodable &explodable2, bool limited)

static QList< RVector >	getIntersectionPointsXX (const RExplodable &explodable1, const RExplodable &explodable2, bool limited=true, bool same=false)

static QList< QSharedPointer< RShape > >	getOffsetArcs (const RShape &shape, double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

static QList< QSharedPointer< RShape > >	getOffsetLines (const RShape &shape, double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

static QList< QSharedPointer< RShape > >	getReversedShapeList (const QList< QSharedPointer< RShape > > &shapes)

static RShapeProxy *	getShapeProxy ()

static bool	hasProxy ()

static bool	isArcShape (const RShape &s)

static bool	isCircleShape (const RShape &s)

static bool	isEllipseShape (const RShape &s)

static bool	isFullEllipseShape (const RShape &s)

static bool	isLineShape (const RShape &s)

static bool	isPointShape (const RShape &s)

static bool	isPolylineShape (const RShape &s)

static bool	isRayShape (const RShape &s)

static bool	isSplineShape (const RShape &s)

static bool	isTriangleShape (const RShape &s)

static bool	isXLineShape (const RShape &s)

static bool	order (QList< QList< QSharedPointer< RShape > > > &boundary)
	Orders the given list of loops into a list of closed loops in which all shapes are connected end to start point. More...

static QSharedPointer< RShape >	rayToLine (QSharedPointer< RShape > shape)

static QList< QSharedPointer< RShape > >	roundAllCorners (const QList< QSharedPointer< RShape > > &shapes, double radius)
	Round every corner of the list of given (connected) shapes with the given radius. More...

static QList< QSharedPointer< RShape > >	roundShapes (const QSharedPointer< RShape > shape1, const RVector &clickPos1, const QSharedPointer< RShape > shape2, const RVector &clickPos2, bool trim, bool samePolyline, double radius, const RVector &pos)
	Rounds the given shape1 against shape2. More...

static QSharedPointer< RShape >	scaleArc (const RShape &shape, const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

static void	setShapeProxy (RShapeProxy *p)

static QSharedPointer< RShape >	transformArc (const RShape &shape, RShapeTransformation &transformation)

static QList< QSharedPointer< RShape > >	trim (const RShape &trimShape, const RVector &trimClickPos, const RShape &limitingShape, const RVector &limitingClickPos, bool trimBoth, bool samePolyline)
	Trims a shape to another or two shapes to each other. More...

static QSharedPointer< RShape >	xLineToRay (QSharedPointer< RShape > shape)

Static Protected Attributes inherited from RShape
static int	errorCode = 0

Detailed Description

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD. Low-level mathematical representation of a point.

Scriptable:\nThis class is available in script environments.\n

Shared Pointer Support:\nObjects can be used in QSharedPointer.\n

Copyable:\nObjects are cleaned up automatically by the garbage collector of the script engine.\n

Stream Operator:\nObject has a stream operator to present itself as string, for example when using toString() in a script.\n

Constructor & Destructor Documentation

◆ RPoint() [1/3]

RPoint::RPoint ( )

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD. Creates a point object with an invalid position

◆ RPoint() [2/3]

RPoint::RPoint	(	double	x,
		double	y
	)

◆ RPoint() [3/3]

RPoint::RPoint ( const RVector & position )

Creates a point object with the given position.

Parameters

position the position

◆ ~RPoint()

RPoint::~RPoint ( )

virtual

Member Function Documentation

◆ clone()

virtual RPoint* RPoint::clone ( ) const

inlinevirtual

Implements RShape.

Reimplemented in RTextLabel.

◆ flipHorizontal()

bool RPoint::flipHorizontal ( )

virtual

Reimplemented from RShape.

◆ flipVertical()

bool RPoint::flipVertical ( )

virtual

Reimplemented from RShape.

◆ getAngleAt()

double RPoint::getAngleAt	(	double	distance,
		RS::From	from = `RS::FromStart`
	)		const

virtual

Returns: Angle on the entity at the given distance from the start point.

Reimplemented from RShape.

◆ getBoundingBox()

RBox RPoint::getBoundingBox ( ) const

virtual

Returns: The bounding box of this shape.

Implements RShape.

Reimplemented in RViewportData.

◆ getCenterPoints()

QList< RVector > RPoint::getCenterPoints ( ) const

virtual

Returns: The center point(s) of this shape.

Implements RShape.

◆ getEndPoints()

QList< RVector > RPoint::getEndPoints ( ) const

virtual

Returns: The end point(s) of this shape.

Implements RShape.

◆ getLength()

double RPoint::getLength ( ) const

virtual

Returns: The total length of this shape if applicable or NaN if not.

Implements RShape.

◆ getMiddlePoints()

QList< RVector > RPoint::getMiddlePoints ( ) const

virtual

Returns: The middle point(s) of this shape.

Implements RShape.

◆ getPointCloud()

QList< RVector > RPoint::getPointCloud ( double segmentLength ) const

virtual

Implements RShape.

◆ getPointsWithDistanceToEnd()

QList< RVector > RPoint::getPointsWithDistanceToEnd	(	double	distance,
		int	from = `RS::FromAny`
	)		const

virtual

Returns: All points on this shape with the given distance to an endpoint.

Implements RShape.

◆ getPosition()

RVector RPoint::getPosition ( ) const

inline

◆ getShapeType()

virtual RShape::Type RPoint::getShapeType ( ) const

inlinevirtual

Reimplemented from RShape.

◆ getTransformed()

QSharedPointer< RShape > RPoint::getTransformed ( const QTransform & transform ) const

virtual

Implements RShape.

◆ getVectorProperties()

QList< RVector > RPoint::getVectorProperties ( ) const

virtual

Reimplemented from RShape.

◆ getVectorTo()

RVector RPoint::getVectorTo	(	const RVector &	point,
		bool	limited = `true`,
		double	strictRange = `RMAXDOUBLE`
	)		const

virtual

Returns: Shortest vector from this shape to the given point.

Parameters

point	the given point
limited	If false, the shape is treated as an unlimited shape that extends in a logical way. For example an unlimited line for a line, full circle for an arc or a plane for a triangle.

Implements RShape.

◆ mirror()

bool RPoint::mirror ( const RLine & axis )

virtual

Implements RShape.

◆ move()

bool RPoint::move ( const RVector & offset )

virtual

Implements RShape.

◆ print()

void RPoint::print ( QDebug dbg ) const

protectedvirtual

Reimplemented from RShape.

Reimplemented in RTextLabel.

◆ rotate()

bool RPoint::rotate	(	double	rotation,
		const RVector &	center = `RDEFAULT_RVECTOR`
	)

virtual

Implements RShape.

◆ scale()

bool RPoint::scale	(	const RVector &	scaleFactors,
		const RVector &	center = `RDEFAULT_RVECTOR`
	)

virtual

Implements RShape.

Reimplemented in RViewportData.

◆ setPosition()

void RPoint::setPosition ( const RVector & p )

inline

◆ setZ()

void RPoint::setZ ( double z )

virtual

Implements RShape.

Member Data Documentation

◆ position

RVector RPoint::position

Getter function for this property: getPosition

Setter function for this property: setPosition

The documentation for this class was generated from the following files:

src/core/math/RPoint.h
src/core/math/RPoint.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RPoint() [1/3]

◆ RPoint() [2/3]

◆ RPoint() [3/3]

◆ ~RPoint()

Member Function Documentation

◆ clone()

◆ flipHorizontal()

◆ flipVertical()

◆ getAngleAt()

◆ getBoundingBox()

◆ getCenterPoints()

◆ getEndPoints()

◆ getLength()

◆ getMiddlePoints()

◆ getPointCloud()

◆ getPointsWithDistanceToEnd()

◆ getPosition()

◆ getShapeType()

◆ getTransformed()

◆ getVectorProperties()

◆ getVectorTo()

◆ mirror()

◆ move()

◆ print()

◆ rotate()

◆ scale()

◆ setPosition()

◆ setZ()

Member Data Documentation

◆ position
