RDimensionData Class Reference
Entity Module

Copyright (c) 2011-2018 by Andrew Mustun. More...

#include <RDimensionData.h>

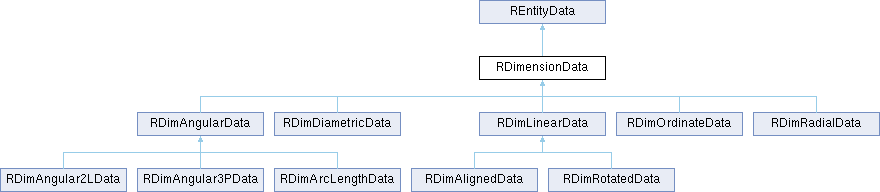

Inheritance diagram for RDimensionData:
REntityData RDimAngularData RDimDiametricData RDimLinearData RDimOrdinateData RDimRadialData RDimAngular2LData RDimAngular3PData RDimArcLengthData RDimAlignedData RDimRotatedData

Public Member Functions

void adjustExtensionLineFixLength (RLine &extLine1, RLine &extLine2, bool addDimExe=true) const

virtual bool clickReferencePoint (const RVector &referencePoint)
 Called when user clicks a reference point. More...

QString formatAngleLabel (double textAngle) const

QString formatLabel (double distance) const

virtual QList< QSharedPointer< RShape > > getArrow (const RVector &position, double direction) const

virtual QString getAutoLabel () const

virtual RBox getBoundingBox (bool ignoreEmpty=false) const

RVector getDefinitionPoint () const

double getDimasz () const

QString getDimBlockName () const

QSharedPointer< RBlockReferenceEntity > getDimensionBlockReference () const

QList< QSharedPointer< RShape > > getDimensionLineShapes (const RVector &p1, const RVector &p2, bool arrow1, bool arrow2) const
 Creates a dimensioning line (line with one, two or no arrows). More...

double getDimexe () const

double getDimexo () const

double getDimgap () const

double getDimScale (bool fromDocument=true) const

double getDimtxt () const

virtual double getDistanceTo (const RVector &point, bool limited=true, double range=0.0, bool draft=false, double strictRange=RMAXDOUBLE) const

double getExtLineFixLength () const

QString getFontName () const

double getLinearFactor () const

double getLineSpacingFactor () const

RS::TextLineSpacingStyle getLineSpacingStyle () const

virtual double getMeasuredValue () const

virtual QString getMeasurement (bool resolveAutoMeasurement=true) const

virtual RVector getPointOnEntity () const

virtual QList< RRefPoint > getReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const

QString getText () const

double getTextAngle () const

RTextData & getTextData () const

RVector getTextPosition () const

virtual RS::EntityType getType () const

bool hasCustomTextPosition () const

bool hasDimensionBlockReference () const

bool hasSpaceForArrows () const

void initTextData () const
 Initializes the text data of the text label of this dimension. More...

virtual bool intersectsWith (const RShape &shape) const

bool isArrow1Flipped () const

bool isArrow2Flipped () const

bool isExtLineFix () const

virtual bool isSane () const

virtual bool isValid () const

virtual bool mirror (const RLine &axis)

virtual bool move (const RVector &offset)
 Moves this entity by the given offset. More...

virtual bool moveReferencePoint (const RVector &referencePoint, const RVector &targetPoint, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
 Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location. More...

 RDimensionData (const RVector &definitionPoint, const RVector &textPositionCenter, RS::VAlign valign, RS::HAlign halign, RS::TextLineSpacingStyle lineSpacingStyle, double lineSpacingFactor, const QString &text, const QString &fontName, double textAngle)

 RDimensionData (RDocument *document=NULL)
 Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual bool rotate (double rotation, const RVector &center)

virtual bool scale (const RVector &scaleFactors, const RVector &center)

virtual void scaleVisualProperties (double scaleFactor)

void setArrow1Flipped (bool on)

void setArrow2Flipped (bool on)

void setCustomTextPosition (bool on)

virtual void setDefinitionPoint (const RVector &p)

void setDimBlockName (const QString &bn)

void setDimScale (double f)

void setExtLineFix (bool on)

void setExtLineFixLength (double v)

void setFontName (const QString &fn)

void setLinearFactor (double f)

void setLowerTolerance (const QString &t)

void setText (const QString &t)

void setTextPosition (const RVector &p)

void setUpperTolerance (const QString &t)

virtual void update () const
 Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty). More...

virtual void updateTextData () const

bool useArchTick () const

- Public Member Functions inherited from REntityData
virtual const RShape * castToConstShape () const

virtual RShape * castToShape ()

virtual bool cloneOnChange () const
 Reimplement to force clone on change in transactions. More...

void copyAttributesFrom (const REntityData &entityData, bool copyBlockId=true)

virtual bool flipHorizontal ()

virtual bool flipVertical ()

virtual QList< RVector > getArcReferencePoints (const RBox &queryBox=RDEFAULT_RBOX) const

RBlock::Id getBlockId () const

QString getBlockName () const

virtual QList< RBox > getBoundingBoxes (bool ignoreEmpty=false) const

virtual QList< RVector > getCenterPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RVector getClosestPointOnEntity (const RVector &point, double range=RNANDOUBLE, bool limited=true) const

virtual QSharedPointer< RShape > getClosestShape (const RVector &pos, double range=RNANDOUBLE, bool ignoreComplex=false) const

virtual RColor getColor () const

virtual RColor getColor (bool resolve, const QStack< REntity * > &blockRefStack) const

virtual RColor getColor (const RColor &unresolvedColor, const QStack< REntity * > &blockRefStack) const

virtual RColor getDisplayColor ()

RDocument * getDocument ()

const RDocument * getDocument () const

virtual int getDrawOrder () const

virtual QList< RVector > getEndPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RPolyline getHull (double offset) const

virtual QList< RRefPoint > getInternalReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const
 Can be overwritten to return internal, resolved reference points. More...

virtual QList< RVector > getIntersectionPoints (const REntityData &other, bool limited=true, bool same=false, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true) const

virtual QList< RVector > getIntersectionPoints (const RShape &shape, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true) const

RLayer::Id getLayerId () const

QString getLayerName () const

virtual RLinetype::Id getLinetypeId () const

virtual RLinetype::Id getLinetypeId (bool resolve, const QStack< REntity * > &blockRefStack) const

virtual RLinetypePattern getLinetypePattern () const

virtual double getLinetypeScale () const

virtual RLineweight::Lineweight getLineweight () const

virtual RLineweight::Lineweight getLineweight (bool resolve, const QStack< REntity * > &blockRefStack) const

double getLineweightInUnits (const QStack< REntity * > &blockRefStack) const

virtual QList< RVector > getMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX) const

RObject::Id getParentId () const

virtual QList< RVector > getPointsWithDistanceToEnd (double distance, int from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX) const

virtual QList< QSharedPointer< RShape > > getShapes (const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=false, bool segment=false) const

virtual RVector getVectorTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual bool isInside (const RBox &box) const

virtual bool isOnEntity (const RVector &point, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual bool isPointType () const

virtual bool isSelected () const

virtual bool isSelectedWorkingSet () const

virtual bool isUpdatesEnabled () const

virtual bool mirror (const RVector &axis1, const RVector &axis2)

 REntityData (RDocument *document=NULL)
 Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual bool scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)

void setAutoUpdatesBlocked (bool on)

virtual void setBlockId (RBlock::Id blockId)

void setColor (const RColor &color)

void setDocument (RDocument *document)

virtual void setDrawOrder (int drawOrder)
 Sets the draw order of this entity. More...

virtual void setLayerId (RLayer::Id layerId)

void setLayerName (const QString &layerName)

virtual void setLinetypeId (RLinetype::Id linetypeId)
 Sets the linetype of this entity to the given linetype ID. More...

virtual void setLinetypePattern (const RLinetypePattern &p)

virtual void setLinetypeScale (double linetypeScale)

void setLineweight (RLineweight::Lineweight lineweight)

virtual void setParentId (RObject::Id parentId)

virtual void setSelected (bool on)
 Selects or deselects this entity. More...

virtual void setSelectedWorkingSet (bool on)
 Selects or deselects this entity for addition to the current working set. More...

void setUpdatesEnabled (bool on)
 Enables / disables cache updates. More...

virtual void setZ (double z)

virtual bool stretch (const RPolyline &area, const RVector &offset)
 Stretches the end points of this entity that are inside area by offset. More...

virtual void to2D ()

virtual ~REntityData ()


Protected Member Functions

 RDimensionData (RDocument *document, const RDimensionData &data)


Protected Attributes

bool arrow1Flipped

RVector arrow1Pos

bool arrow2Flipped

RVector arrow2Pos

bool autoTextPos
 True if the textPosition should be automatically calculated. More...

RBox boundingBox

double defaultAngle

RVector definitionPoint
 Definition point. More...

QString dimBlockName
 Dimension text color. More...

double dimLineLength

double dimScaleOverride

bool dirty

bool extLineFix

double extLineFixLength

QString fontName
 Dimension font name. More...

RS::HAlign halign
 Horizontal alignment. More...

double linearFactor

double lineSpacingFactor
 Line spacing factor. More...

RS::TextLineSpacingStyle lineSpacingStyle
 Line spacing style. More...

QString lowerTolerance
 Lower tolerance limit. More...

QString text
 Text string entered explicitly by user or null or "<>" for the actual measurement or " " (one blank space) for suppressing the text. More...

double textAngle
 Rotation angle of dimension text away from default orientation. More...

RTextData textData

RVector textPositionCenter
 Middle point of dimension text. More...

RVector textPositionSide
 Middle point of dimension text when automatically moved to the side for lack of space. More...

QString upperTolerance
 Upper tolerance limit. More...

RS::VAlign valign
 Vertical alignment. More...

- Protected Attributes inherited from REntityData
bool autoUpdatesBlocked
 Block auto updates is true during imports, undo and redo. More...

RBlock::Id blockId

RColor color

RDocument * document

int drawOrder

RLayer::Id layerId

RLinetype::Id linetypeId

double linetypeScale

RLineweight::Lineweight lineweight

RObject::Id parentId

bool selectionStatus

bool selectionStatusWorkingSet

bool updatesEnabled


Friends

class RDimensionEntity


Additional Inherited Members

- Static Public Member Functions inherited from REntityData
static int getDefaultDrawOrder ()


Detailed Description

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD. Base class for dimension entity data classes.

Scriptable:\nThis class is available in script environments.\n
Todo:
explodable interface that returns list of REntityData, maybe base class RComposedEntityData?

Constructor & Destructor Documentation

◆ RDimensionData() [1/3]

RDimensionData::RDimensionData ( RDocument *  document,
const RDimensionData &  data
)
protected

◆ RDimensionData() [2/3]

RDimensionData::RDimensionData ( RDocument *  document = NULL)

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ RDimensionData() [3/3]

RDimensionData::RDimensionData ( const RVector &  definitionPoint,
const RVector &  textPosition,
RS::VAlign  valign,
RS::HAlign  halign,
RS::TextLineSpacingStyle  lineSpacingStyle,
double  lineSpacingFactor,
const QString &  text,
const QString &  style,
double  angle
)
Parameters
definitionPointDefinition point.
textPositionMiddle point of dimension text.
valignVertical alignment.
halignHorizontal alignment.
lineSpacingStyleLine spacing style.
lineSpacingFactorLine spacing factor.
textText string entered explicitly by user or null or "<>" for the actual measurement or " " (one blank space). for suppressing the text.
styleDimension style name.
angleRotation angle of dimension text away from default orientation.

Member Function Documentation

◆ adjustExtensionLineFixLength()

void RDimensionData::adjustExtensionLineFixLength ( RLine &  extLine1,
RLine &  extLine2,
bool  addDimExe = true
) const

◆ clickReferencePoint()

bool RDimensionData::clickReferencePoint ( const RVector &  referencePoint)
virtual

Called when user clicks a reference point.

Returns
True if clicking the reference point had any immediate effect.

Reimplemented from REntityData.

◆ formatAngleLabel()

QString RDimensionData::formatAngleLabel ( double  textAngle) const

◆ formatLabel()

QString RDimensionData::formatLabel ( double  distance) const

◆ getArrow()

QList< QSharedPointer< RShape > > RDimensionData::getArrow ( const RVector &  position,
double  direction
) const
virtual

◆ getAutoLabel()

virtual QString RDimensionData::getAutoLabel ( ) const
inlinevirtual

Reimplemented in RDimArcLengthData, RDimOrdinateData, RDimRotatedData, RDimDiametricData, RDimRadialData, RDimAngularData, and RDimAlignedData.

◆ getBoundingBox()

RBox RDimensionData::getBoundingBox ( bool  ignoreEmpty = false) const
virtual
Returns
The bounding box that contains this entity.

Reimplemented from REntityData.

Reimplemented in RDimRotatedData, RDimAlignedData, and RDimOrdinateData.

◆ getDefinitionPoint()

RVector RDimensionData::getDefinitionPoint ( ) const
inline

◆ getDimasz()

double RDimensionData::getDimasz ( ) const

◆ getDimBlockName()

QString RDimensionData::getDimBlockName ( ) const
inline

◆ getDimensionBlockReference()

QSharedPointer< RBlockReferenceEntity > RDimensionData::getDimensionBlockReference ( ) const

◆ getDimensionLineShapes()

QList< QSharedPointer< RShape > > RDimensionData::getDimensionLineShapes ( const RVector &  p1,
const RVector &  p2,
bool  arrow1,
bool  arrow2
) const

Creates a dimensioning line (line with one, two or no arrows).

◆ getDimexe()

double RDimensionData::getDimexe ( ) const

◆ getDimexo()

double RDimensionData::getDimexo ( ) const

◆ getDimgap()

double RDimensionData::getDimgap ( ) const

◆ getDimScale()

double RDimensionData::getDimScale ( bool  fromDocument = true) const

◆ getDimtxt()

double RDimensionData::getDimtxt ( ) const

◆ getDistanceTo()

double RDimensionData::getDistanceTo ( const RVector &  point,
bool  limited = true,
double  range = 0.0,
bool  draft = false,
double  strictRange = RMAXDOUBLE
) const
virtual
Returns
The shortest distance from this entity to the given point.
Parameters
limitedLimit lines, arcs at end points, otherwise the orthogonal distance to the unlimited line / circle is returned.
rangeThis is returned for solid filled entities (solid filled or dense hatches, text entities) if the point is on the entity and the distance would be zero.
draftCalculate based on draft mode representation of the entity.
strictRangeIf limited, this is the maximum range from either end point of the entity. Zero to only return distances that are strictly orthogonal to the entity.

Reimplemented from REntityData.

◆ getExtLineFixLength()

double RDimensionData::getExtLineFixLength ( ) const
inline

◆ getFontName()

QString RDimensionData::getFontName ( ) const
inline

◆ getLinearFactor()

double RDimensionData::getLinearFactor ( ) const
inline

◆ getLineSpacingFactor()

double RDimensionData::getLineSpacingFactor ( ) const
inline

◆ getLineSpacingStyle()

RS::TextLineSpacingStyle RDimensionData::getLineSpacingStyle ( ) const
inline

◆ getMeasuredValue()

virtual double RDimensionData::getMeasuredValue ( ) const
inlinevirtual

Reimplemented in RDimArcLengthData, RDimOrdinateData, RDimRotatedData, RDimDiametricData, RDimRadialData, RDimAngularData, and RDimAlignedData.

◆ getMeasurement()

QString RDimensionData::getMeasurement ( bool  resolveAutoMeasurement = true) const
virtual

Reimplemented in RDimArcLengthData.

◆ getPointOnEntity()

RVector RDimensionData::getPointOnEntity ( ) const
virtual
Returns
A point that is on the entity. Used to check if an entity is inside a polygon.

Reimplemented from REntityData.

◆ getReferencePoints()

QList< RRefPoint > RDimensionData::getReferencePoints ( RS::ProjectionRenderingHint  hint = RS::RenderTop) const
virtual
Returns
Vector of reference points of this entity. Reference points can usually be moved around by the user to change the geometry of the entity.

Implements REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimDiametricData, RDimRadialData, RDimRotatedData, RDimAngularData, and RDimAlignedData.

◆ getText()

QString RDimensionData::getText ( ) const
inline

◆ getTextAngle()

double RDimensionData::getTextAngle ( ) const
inline

◆ getTextData()

RTextData & RDimensionData::getTextData ( ) const
Returns
Text data of the text label.

◆ getTextPosition()

RVector RDimensionData::getTextPosition ( ) const
inline

◆ getType()

virtual RS::EntityType RDimensionData::getType ( ) const
inlinevirtual

Reimplemented from REntityData.

Reimplemented in RDimAngular2LData, RDimAngular3PData, RDimArcLengthData, RDimRotatedData, RDimAlignedData, RDimAngularData, RDimLinearData, RDimOrdinateData, RDimDiametricData, and RDimRadialData.

◆ hasCustomTextPosition()

bool RDimensionData::hasCustomTextPosition ( ) const

◆ hasDimensionBlockReference()

bool RDimensionData::hasDimensionBlockReference ( ) const

◆ hasSpaceForArrows()

bool RDimensionData::hasSpaceForArrows ( ) const

◆ initTextData()

void RDimensionData::initTextData ( ) const

Initializes the text data of the text label of this dimension.

The text data is created at 0/0 at an angle or 0. Moving the label to the right position at the right angle is up to the particular dimension implementation.

◆ intersectsWith()

bool RDimensionData::intersectsWith ( const RShape &  shape) const
virtual
Returns
True if this entity intersects with the given shape, false otherwise.
Todo:
better to pass another entity data object?

Reimplemented from REntityData.

◆ isArrow1Flipped()

bool RDimensionData::isArrow1Flipped ( ) const
inline

◆ isArrow2Flipped()

bool RDimensionData::isArrow2Flipped ( ) const
inline

◆ isExtLineFix()

bool RDimensionData::isExtLineFix ( ) const
inline

◆ isSane()

bool RDimensionData::isSane ( ) const
virtual

Reimplemented from REntityData.

Reimplemented in RDimAngular2LData, RDimAngular3PData, RDimArcLengthData, RDimRotatedData, RDimAngularData, RDimLinearData, RDimOrdinateData, RDimDiametricData, and RDimRadialData.

◆ isValid()

bool RDimensionData::isValid ( ) const
virtual

Reimplemented from REntityData.

Reimplemented in RDimAngular2LData, RDimAngular3PData, RDimArcLengthData, RDimRotatedData, RDimAngularData, RDimLinearData, RDimOrdinateData, RDimDiametricData, and RDimRadialData.

◆ mirror()

bool RDimensionData::mirror ( const RLine &  axis)
virtual

Reimplemented from REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimLinearData, RDimRotatedData, RDimDiametricData, and RDimRadialData.

◆ move()

bool RDimensionData::move ( const RVector &  offset)
virtual

Moves this entity by the given offset.

Reimplemented from REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimLinearData, RDimDiametricData, and RDimRadialData.

◆ moveReferencePoint()

bool RDimensionData::moveReferencePoint ( const RVector &  referencePoint,
const RVector &  targetPoint,
Qt::KeyboardModifiers  modifiers = Qt::NoModifier
)
virtual

Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.

Returns
True if a reference point has been moved successfully, false otherwise.

Implements REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimLinearData, RDimDiametricData, RDimRadialData, RDimRotatedData, RDimAngularData, and RDimAlignedData.

◆ rotate()

bool RDimensionData::rotate ( double  rotation,
const RVector &  center
)
virtual

Reimplemented from REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimLinearData, RDimRotatedData, RDimDiametricData, and RDimRadialData.

◆ scale()

bool RDimensionData::scale ( const RVector &  scaleFactors,
const RVector &  center
)
virtual

Reimplemented from REntityData.

Reimplemented in RDimArcLengthData, RDimAngular2LData, RDimOrdinateData, RDimAngular3PData, RDimLinearData, RDimDiametricData, and RDimRadialData.

◆ scaleVisualProperties()

void RDimensionData::scaleVisualProperties ( double  scaleFactor)
virtual

Reimplemented from REntityData.

◆ setArrow1Flipped()

void RDimensionData::setArrow1Flipped ( bool  on)
inline

◆ setArrow2Flipped()

void RDimensionData::setArrow2Flipped ( bool  on)
inline

◆ setCustomTextPosition()

void RDimensionData::setCustomTextPosition ( bool  on)

◆ setDefinitionPoint()

virtual void RDimensionData::setDefinitionPoint ( const RVector &  p)
inlinevirtual

Reimplemented in RDimLinearData.

◆ setDimBlockName()

void RDimensionData::setDimBlockName ( const QString &  bn)
inline

◆ setDimScale()

void RDimensionData::setDimScale ( double  f)
inline

◆ setExtLineFix()

void RDimensionData::setExtLineFix ( bool  on)
inline

◆ setExtLineFixLength()

void RDimensionData::setExtLineFixLength ( double  v)
inline

◆ setFontName()

void RDimensionData::setFontName ( const QString &  fn)
inline

◆ setLinearFactor()

void RDimensionData::setLinearFactor ( double  f)
inline

◆ setLowerTolerance()

void RDimensionData::setLowerTolerance ( const QString &  t)
inline

◆ setText()

void RDimensionData::setText ( const QString &  t)
inline

◆ setTextPosition()

void RDimensionData::setTextPosition ( const RVector &  p)
inline

◆ setUpperTolerance()

void RDimensionData::setUpperTolerance ( const QString &  t)
inline

◆ update()

void RDimensionData::update ( ) const
virtual

Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).

Reimplemented from REntityData.

◆ updateTextData()

void RDimensionData::updateTextData ( ) const
virtual

Reimplemented in RDimLinearData, and RDimDiametricData.

◆ useArchTick()

bool RDimensionData::useArchTick ( ) const

Friends And Related Function Documentation

◆ RDimensionEntity

friend class RDimensionEntity
friend

Member Data Documentation

◆ arrow1Flipped

bool RDimensionData::arrow1Flipped
protected

◆ arrow1Pos

RVector RDimensionData::arrow1Pos
mutableprotected

◆ arrow2Flipped

bool RDimensionData::arrow2Flipped
protected

◆ arrow2Pos

RVector RDimensionData::arrow2Pos
mutableprotected

◆ autoTextPos

bool RDimensionData::autoTextPos
mutableprotected

True if the textPosition should be automatically calculated.

◆ boundingBox

RBox RDimensionData::boundingBox
mutableprotected

◆ defaultAngle

double RDimensionData::defaultAngle
mutableprotected

◆ definitionPoint

RVector RDimensionData::definitionPoint
mutableprotected

Definition point.

◆ dimBlockName

QString RDimensionData::dimBlockName
mutableprotected

Dimension text color.

Dimension appearance is defined in this block

◆ dimLineLength

double RDimensionData::dimLineLength
mutableprotected

◆ dimScaleOverride

double RDimensionData::dimScaleOverride
protected

◆ dirty

bool RDimensionData::dirty
mutableprotected

◆ extLineFix

bool RDimensionData::extLineFix
protected

◆ extLineFixLength

double RDimensionData::extLineFixLength
protected

◆ fontName

QString RDimensionData::fontName
protected

Dimension font name.

◆ halign

RS::HAlign RDimensionData::halign
protected

Horizontal alignment.

◆ linearFactor

double RDimensionData::linearFactor
protected

◆ lineSpacingFactor

double RDimensionData::lineSpacingFactor
protected

Line spacing factor.

◆ lineSpacingStyle

RS::TextLineSpacingStyle RDimensionData::lineSpacingStyle
protected

Line spacing style.

◆ lowerTolerance

QString RDimensionData::lowerTolerance
protected

Lower tolerance limit.

◆ text

QString RDimensionData::text
protected

Text string entered explicitly by user or null or "<>" for the actual measurement or " " (one blank space) for suppressing the text.

◆ textAngle

double RDimensionData::textAngle
protected

Rotation angle of dimension text away from default orientation.

◆ textData

RTextData RDimensionData::textData
mutableprotected

◆ textPositionCenter

RVector RDimensionData::textPositionCenter
mutableprotected

Middle point of dimension text.

◆ textPositionSide

RVector RDimensionData::textPositionSide
mutableprotected

Middle point of dimension text when automatically moved to the side for lack of space.

◆ upperTolerance

QString RDimensionData::upperTolerance
protected

Upper tolerance limit.

◆ valign

RS::VAlign RDimensionData::valign
protected

Vertical alignment.

The documentation for this class was generated from the following files:
